Rhino 2.0 RGB Whip Lights
The whip we built our name on
Every Rhino 2.0 starts as our own LED strip, cut to length and wrapped around a rigid fiberglass core with no spacing between turns, then sealed in UV-protected clear resin under UV-rated clear heat shrink. One inch finished diameter. Built in 2, 3 and 4 ft, as a single or a pair.
Which whip is for you
Rhino 2.0
The most configurable whip in the range. One inch, RGB, singles or pairs, and the only one built in 4 ft. Runs on the Rhino RGB system.
Rhino 2.5 Fattie
The same RGB strip and base at 1.3 in. Sold in pairs, 12 in to 3 ft. Same Rhino RGB system, so it syncs with a 2.0.
Rhino 3.0 RGB+W
The 1.3 in body with a dedicated white channel. Pairs only, on the separate RGB+W system with Axion rock lights.
How it is built
We build the LED strip, cut it to length and hand wrap it. The core is a rigid fiberglass rod that does not bind, the wrap has no gaps, and the whole whip is sealed in UV-protected resin and UV-rated clear heat shrink so it stays clear in the sun. Built, tested and serviced in Huntersville, North Carolina.
- Our own LED strip, built to length in house
- Hand-selected 5050 RGB LEDs, 360-degree wrap, zero spacing
- UV-protected clear resin under UV-rated clear heat shrink
- Metal-to-metal brass quick disconnect, machined in Huntersville
- Serviceable, not disposable: we open it, repair it and return it
LEDs by length
| Whip | LED strip inside | LEDs per whip |
|---|---|---|
| 2 ft | 12 ft | about 240 |
| 3 ft | 18 ft | about 360 |
| 4 ft | 24 ft | about 462 |
The base matters as much as the whip
Each whip ships with our black spring base, machined in Huntersville with a brass quick disconnect that does not corrode or clog. The fiberglass core does not bend, so the spring is what lets the whip fold instead of snap when a branch, a garage door or a toy hauler finds it. A spring is required on any whip 2 ft or longer for the warranty to apply, and it is included.

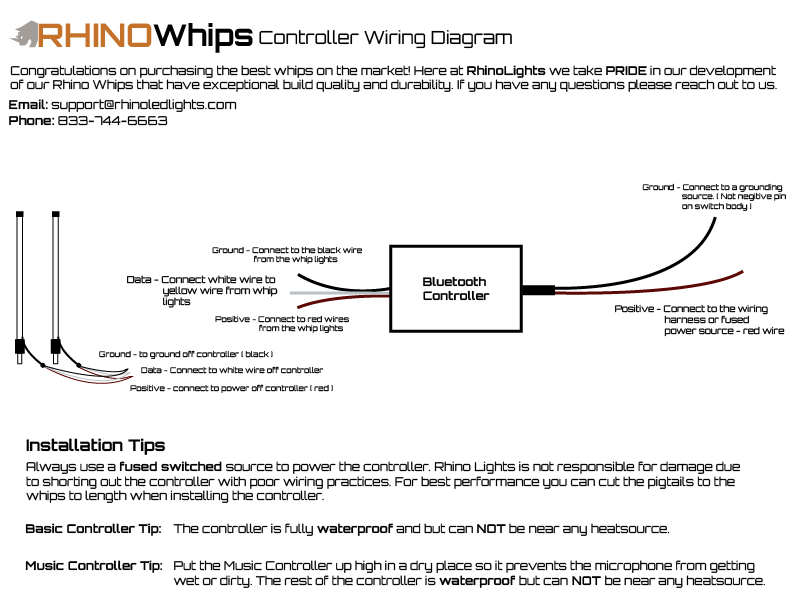

Wiring
Every whip ships with 10 ft of 3-pin 18-gauge wire with pigtails and nut-and-bolt mounting hardware. Do not extend the wire: longer runs corrupt the data signal. Add the optional plug-and-play harness with rocker switch for a fused, switched feed from the battery.
System
Runs on the Rhino RGB system, so one Bluetooth controller drives the whips and everything else on the list below. Solid colors, chasing, stacking, dancing and pulsing, plus music mode from the microphone in the controller. Add turn, brake and reverse with a Connex board.
- Rhino Whip(s) — built in North Carolina
- Rhino Black Spring(s) — wound in North Carolina - Not included for 12in or 18in Whips
- Rhino Flag(s)
- Whip Pigtail(s)
- Nut and Bolt Mounting Hardware for each whip
- Optional: Plug-n-Play Wiring Harness with Rocker Switch
