Ultraviolet UV Black Light Diamond Duo Series Rock Lights
We built a 365nm UV rock light ( not purple ) that is genuinely hard to build well — a true 365 nm emitter throws off a lot of heat and needs a lens that survives it. We had many task we had to tackle, one being heat, two being a lens that can take the heat waves of our 365nm wave length UV light. After many months and dozens of specialty blend lenses we finally think we got a solution. Using our incredible 6061T6 aluminum housing to help dissipate the heat we were able to shove 2 channels of light in the housing to create an incredibly bright rock light. That means we have a primary channel of white cree leds followed up with an UV led. You have a 3 gang shield wire with 2 positive wires ( Red / Yellow ) and one shared ground / negative wire. You can hook up the rock light system to a double through rocker switch to allow you dual use of these rock lights with a fused switched source to control the rock lights. No controller needed. This is two rock light systems in ONE!
Quality:
We are known for building over the top products with extremely high quality. Our Diamond Series rock lights are no different. See the difference:
Features:
- IP69k Rated

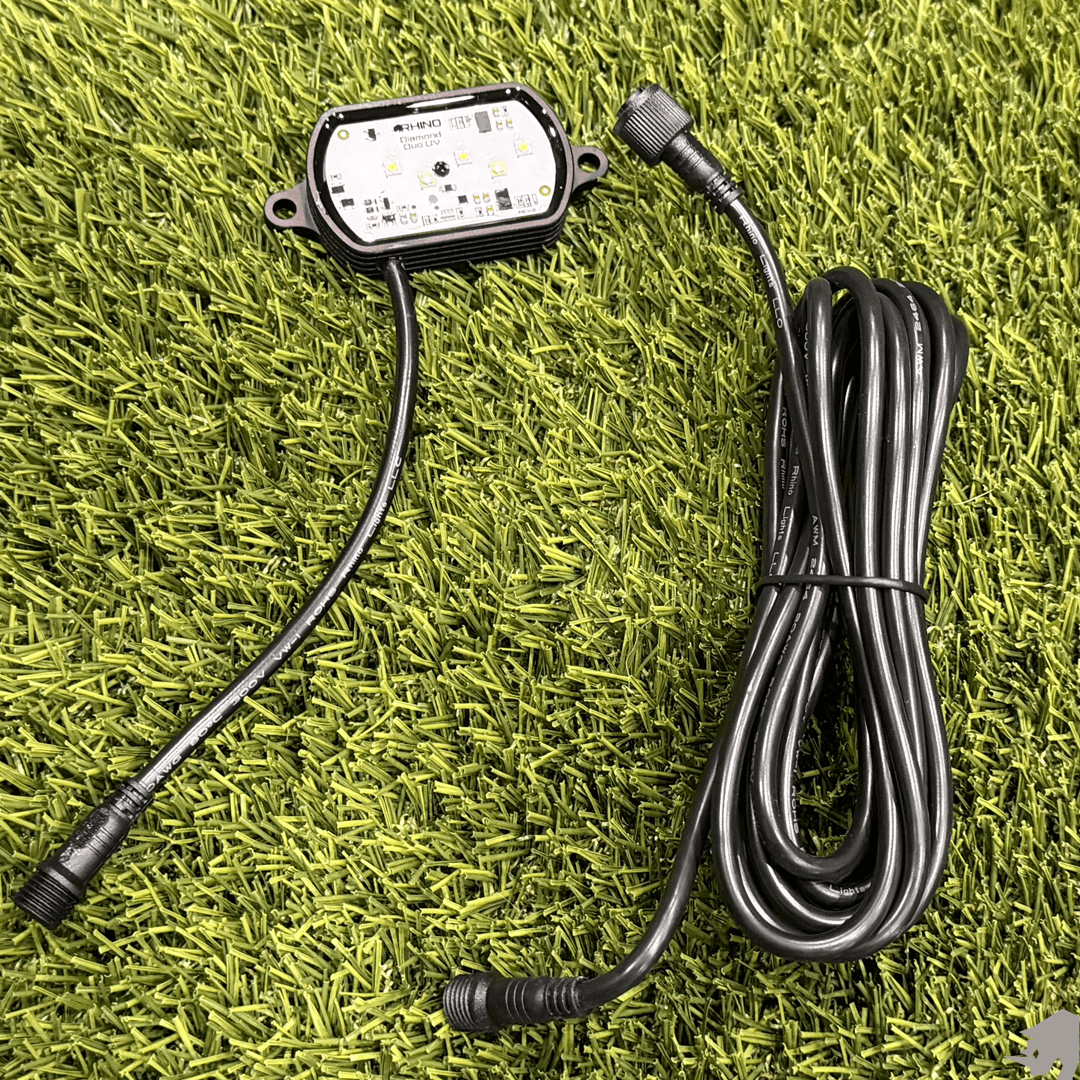

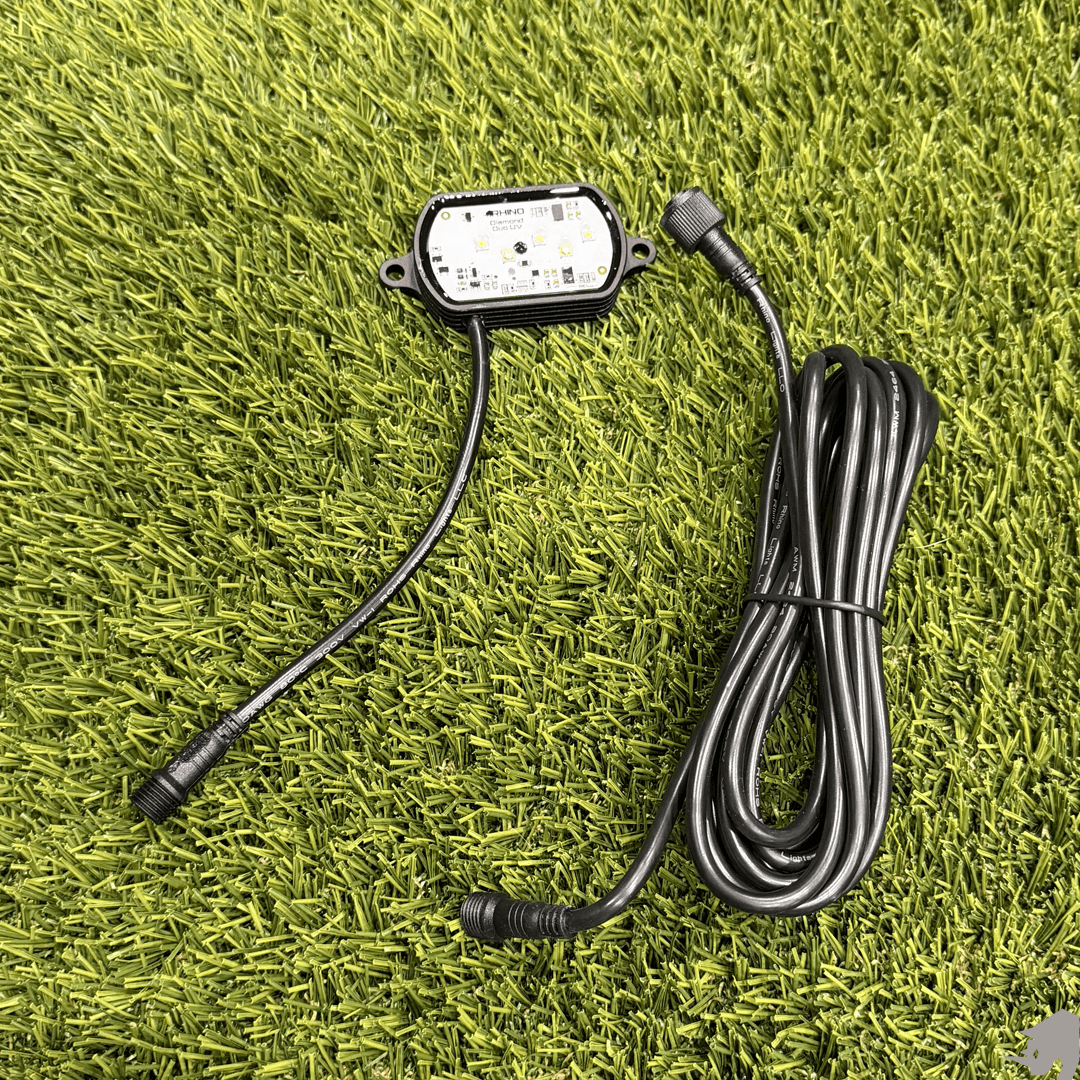

- 12" Wire Lead from each rock light with positive and negative wires
- UV Resistant LENs
- Rhino-engineered 6061-T6 aluminum CNC-milled housing, machined in Huntersville, North Carolina

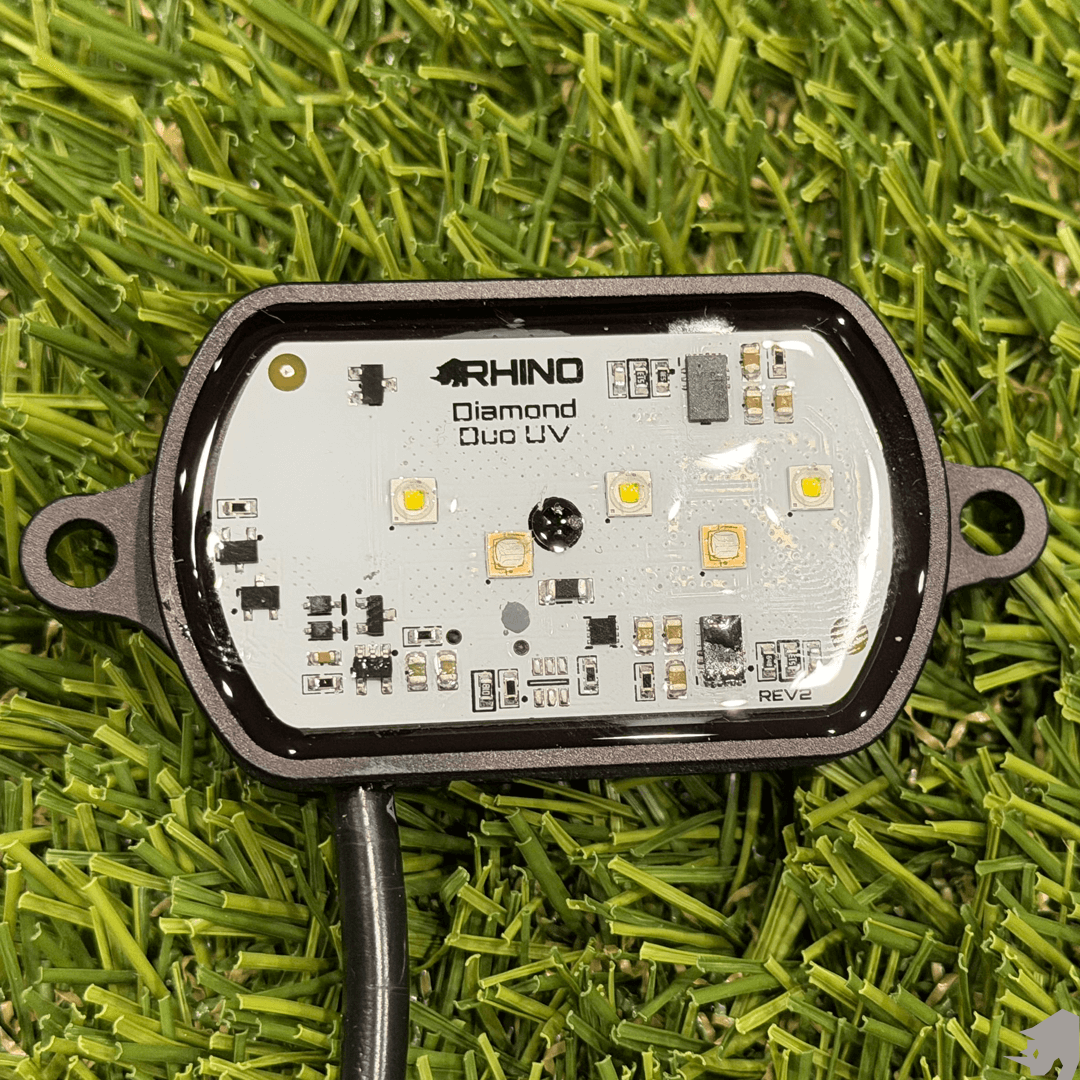

- A dedicated white Cree channel plus a true 365 nm UV emitter ( not purple ), hand selected, on one rock light board.
- Price is per EACH rock light
- 12 Volt Power Needed
- Machined, assembled and tested in Huntersville, North Carolina.
- Serviceable, not disposable — we repair what we build.
These figures are on 1 rock light pod.
| Color | Draw ( 14v ) | Lumens |
|---|---|---|
| UV | 2.4 amps |
The Cooler the Better! Due to the extreme brightness of the leds they put off a lot of heat. These rock lights self regulate and they dynamically adjust the leds to accommodate the heat. If you can mount the leds to metal it will allow them to run cooler and in turn be brighter. We do this to ensure the longevity of the cree leds.
Warning: Do NOT use any harsh chemicals such as acetone, purple power, degreaser, brake cleaner as this will damage the resin. Simple soap and water is enough to clean the rock lights.
